CDM12R3A-FSL03A-0.5BP75

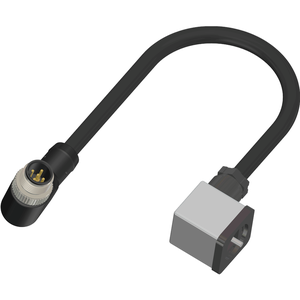

M12 A-Coded 3-Pin Male Right Angle to Valve Connector-A , 2P + E , With 1-LED ,Connected with Z-Diod
M12 A-Coded 3-Pin Male Right Angle to Valve Connector-A , 2P + E , With 1-LED ,Connected with Z-Diode Cable :Black,PVC,0.75mm,0.5m
Download Datasheet
Specifications of CDM12R3A-FSL03A-0.5BP75
| Parameter | Value |
|---|---|
| Product Group | M12 |
| Category | Molded Dual Connectors |
| Coding | A |
| Male / Female | DualM-SN |
| Orientation | Angled to SN |
| No. Of Pins | 5 |
| No. Of Cores | 3 |
| Cable Cross Section | 0.75 sqmm |
| Cable Length | 0.5m |
| Cable Sheath | PVC |
| Shielding | Yes |
