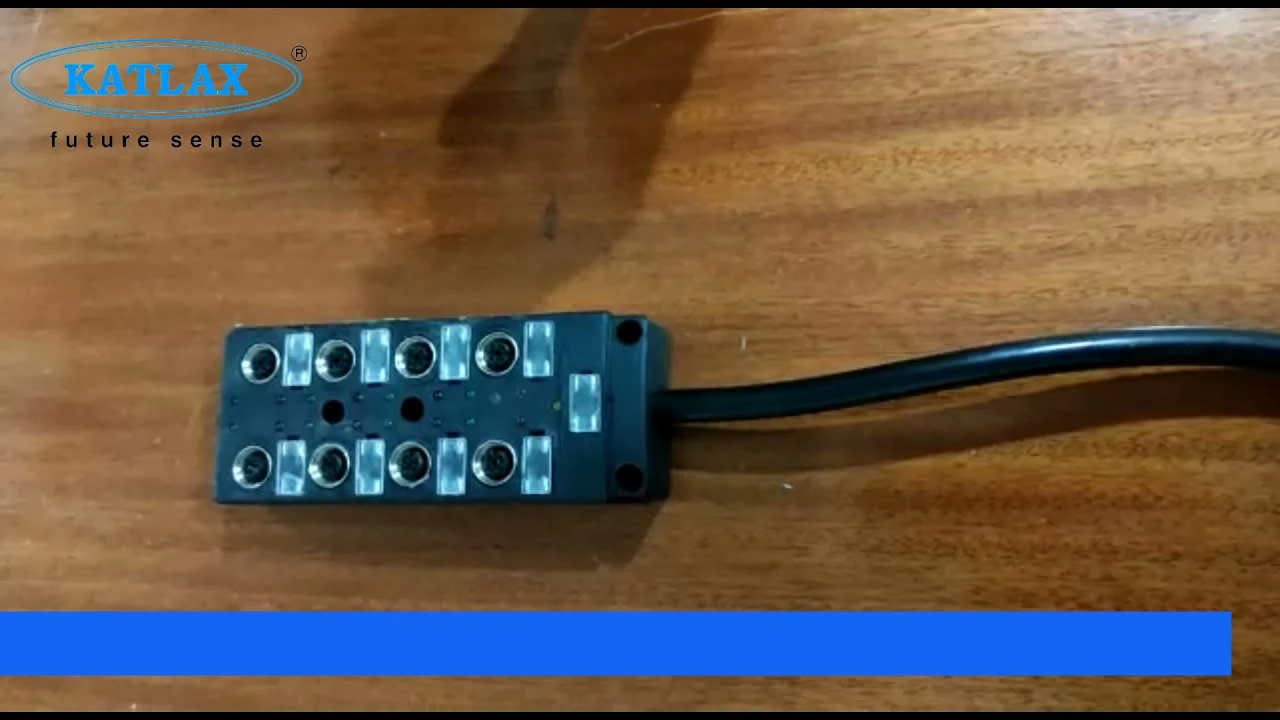

M8 and M12 Connectors Tightening Torque Demo

This tool is the ideal, all-purpose tool for tightening all common sensor and actuator cables. Even difficult-to-reach round plugs are accessible using this tool. A simple turning movement tightens and loosens the connectors without the need for excessive force. This tool is a unique and global solution since it fits with most cables and plugs from other vendors. The optimum tightening torque ensures a permanently tight connection and protects against material damage and expensive reworking.

This torque wrench set includes 4 parts: Torque wrench, setting tool, as well as key inserts for M8 and M12-connectors, respectively. The setting tool allows a step-less selection of the desired tightening torque in the range from 0.4 to 1Nm, whereby the set value can be read on a display

The recommended torque for mating the connectors is:

M8 connectors: 0.4 Nm [3.54 lb-ft]

M12 connectors: 0.6 Nm [5.31 lb-ft]
