The M12 Connector: The Industrial-Automation Standard
The M12 circular connector is the most widely deployed industrial connector family on the planet. Defined under IEC 61076-2-101 (and IEC 61076-2-109 for X-coded Industrial Ethernet variants), the M12 is a 12 mm threaded coupling system that has become the de-facto choice for sensor, actuator, fieldbus, Ethernet, and increasingly power applications in factory automation, process control, mobile machinery, energy, and rail. Katlax manufactures the full M12 portfolio at our Santej, Gandhinagar facility — 3,600+ standard part numbers across nine coding variants, IP67/IP68 rated, TUV Rheinland EN/IEC certified, CE / UL / RoHS / REACH compliant.
M12 connectors won the industrial-automation interconnect race for three reasons: the screw-thread coupling is vibration-immune (unlike push-pull or bayonet alternatives), the 12 mm form factor packs enough pins for modern bus protocols while staying compact enough to mount on a sensor body, and the IEC standardisation guarantees mating compatibility across every supplier on Earth. A Katlax M12 D-coded plug mates with a Phoenix Contact, Binder, or Murr socket — by design.
M12 Coding Variants — A, B, C, D, X, L, S, K, T
M12 coding refers to the mechanical "key" inside the connector housing — a small asymmetric feature that prevents a power cable from being plugged into a signal port (or vice-versa). Each coding maps to a use case, and choosing the wrong one is the single most common spec error we see. Here's the complete map:
| Coding | Pins | Primary use case | Notes |
|---|---|---|---|

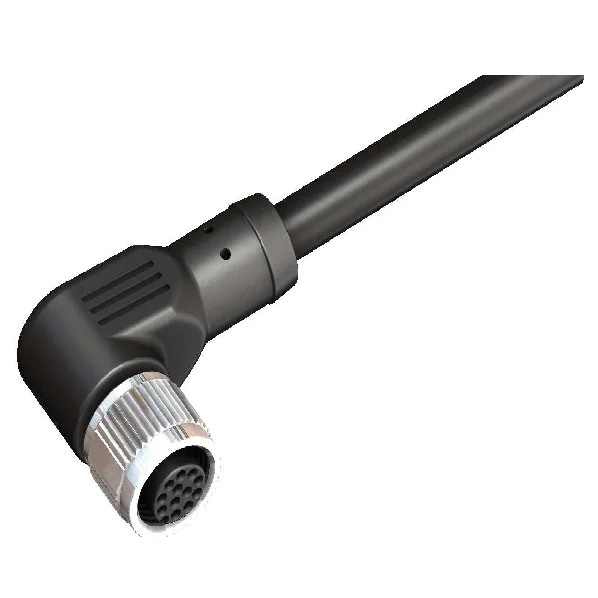

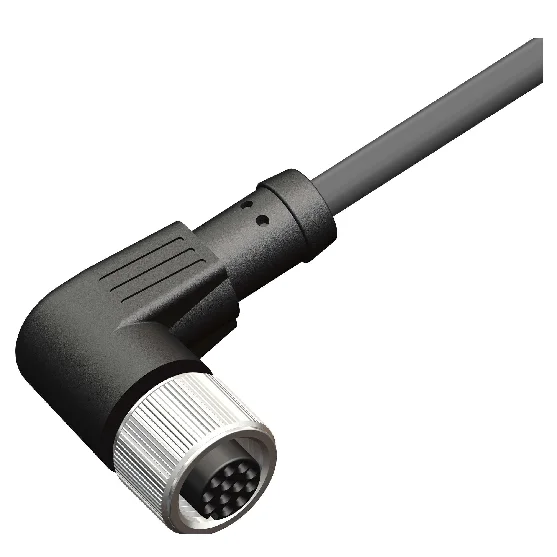

| A-Coded | 3 / 4 / 5 / 8 / 12 / 17 | Sensors, actuators, low-voltage signal | The original M12 — most widely deployed. Default for proximity, photoelectric and inductive sensors. |
| B-Coded | 5 | Fieldbus (PROFIBUS-DP, INTERBUS) | 5-pin only. Reverse-keyed from A so PROFIBUS cables can't be cross-plugged into sensors. |
| C-Coded | 3+PE / 5 | AC sensors with protective earth | Carries a PE pin for grounded AC loads. Common in AS-Interface networks. |

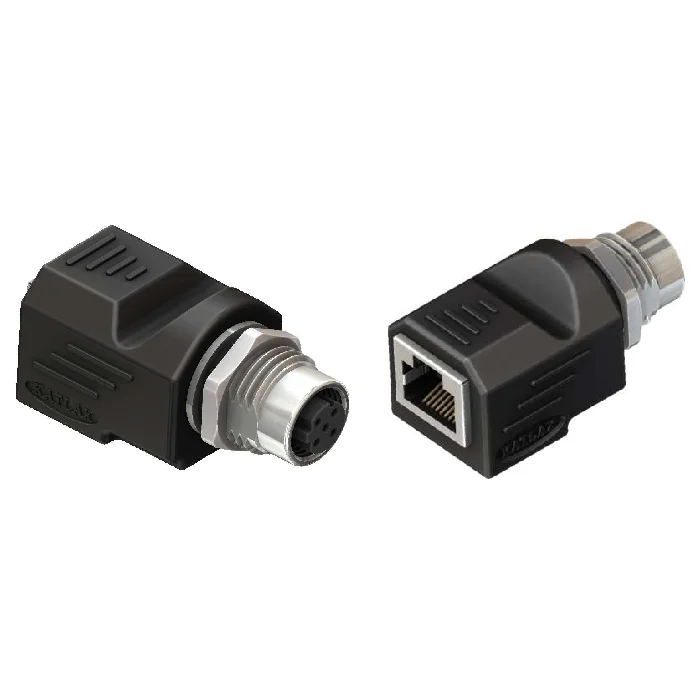

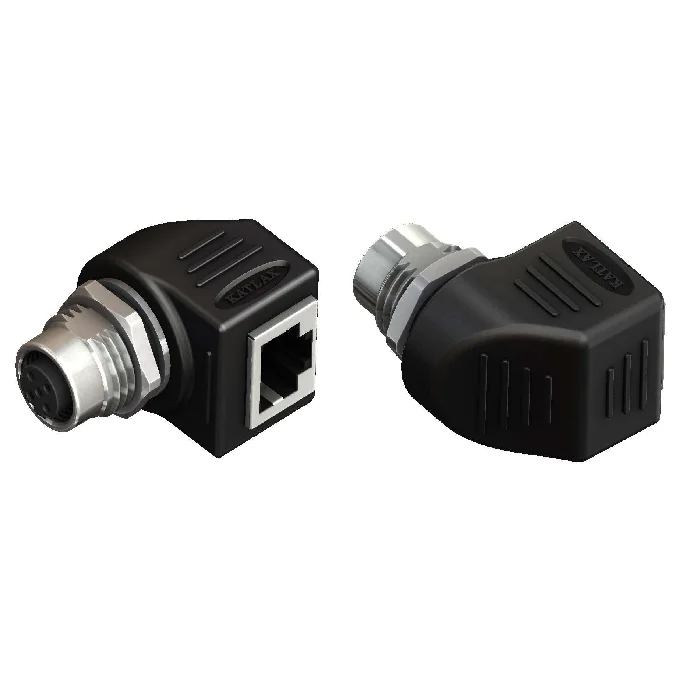

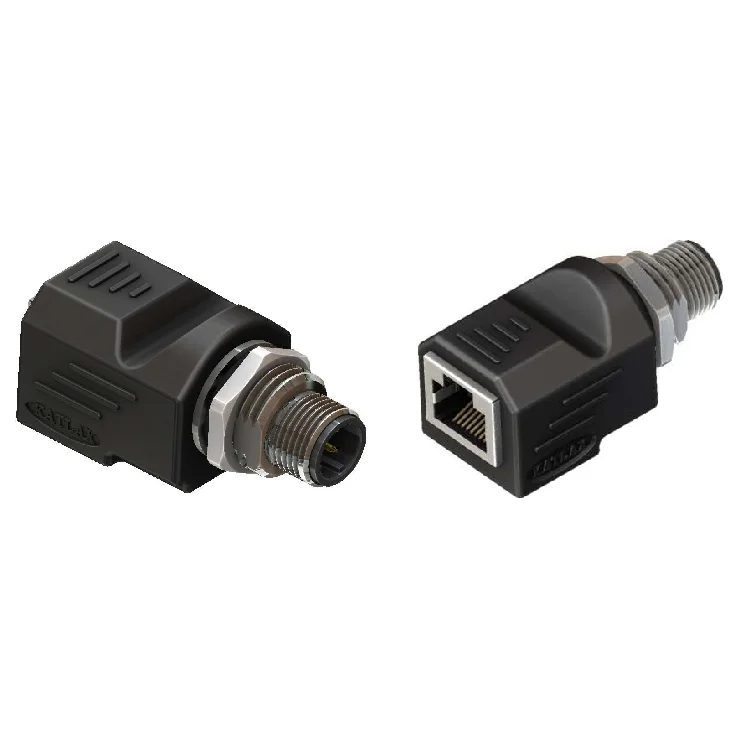

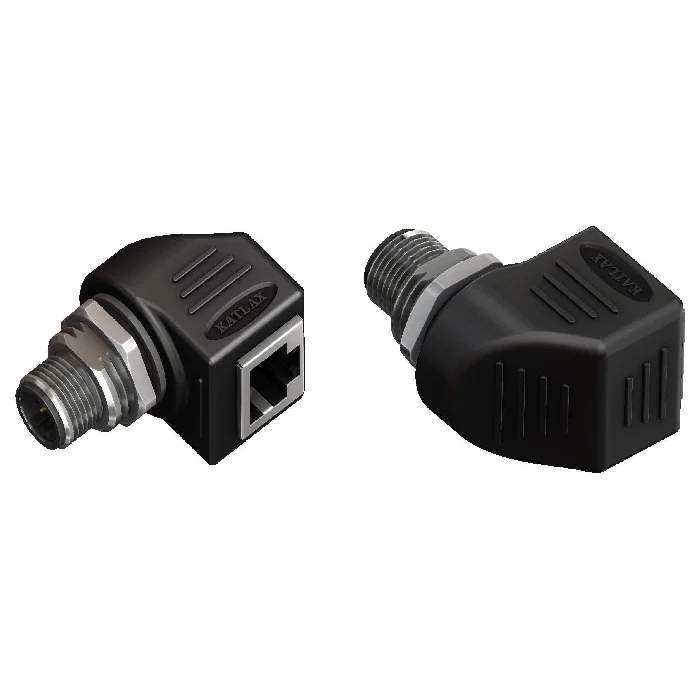

| D-Coded | 4 | Industrial Ethernet (Cat-5e, 100 Mbit) | Shielded 4-pin for PROFINET, EtherCAT, Ethernet/IP. The "Fast Ethernet" coding. |
| X-Coded | 8 | Gigabit + 10G Industrial Ethernet (Cat-6A) | Defined under IEC 61076-2-109. Four shielded pairs, supports up to 10 Gbps. Required for time-sensitive networking (TSN). |
| L-Coded | 4 + FE | DC power, drives, IO-Link power | 16 A per pin, 63 V DC. Replaced 7/8" as the modern DC-power standard. Functional Earth on the centre pin. |
| S-Coded | 2+PE / 3+PE | AC power up to 630 V / 12 A | For motors, pumps, AC drives. PE pin protects against fault current. |
| T-Coded | 4 | DC power up to 63 V / 12 A | Three-phase + earth in a compact 4-pin layout. Smaller alternative to S-coding for low-voltage drives. |
| K-Coded | 4 + PE | AC power up to 630 V / 16 A | The highest-current AC variant. Specialised for industrial motor connections. |
Quick decision rule: if you're moving data — D or X. If you're moving signal — A. If you're moving DC power — L or T. If you're moving AC power — S or K. Browse the complete M12 catalogue filtered by coding, or grab the pin-assignment reference for the exact wire-colour map on each variant.
Pin Configurations and Wire-Colour Codes
M12 pin counts range from 3 to 17 depending on coding. For the most common A-coded signal variants, the IEC 60757 wire-colour convention is:
| Pin | 3-Pin (A) | 4-Pin (A) | 5-Pin (A) | 8-Pin (A) |
|---|---|---|---|---|
| 1 | BN (Brown) | BN (Brown) | BN (Brown) | WH (White) |
| 2 | — | WH (White) | WH (White) | BN (Brown) |
| 3 | BU (Blue) | BU (Blue) | BU (Blue) | GN (Green) |
| 4 | BK (Black) | BK (Black) | BK (Black) | YE (Yellow) |
| 5 | — | — | GY (Grey) | GY (Grey) |
| 6 | — | — | — | PK (Pink) |
| 7 | — | — | — | BU (Blue) |
| 8 | — | — | — | RD (Red) |
Full pin-out diagrams and wire-colour tables for every M12 coding (including the 12-pin high-density and X-coded Industrial Ethernet pairs WH/OR, WH/GN, WH/BN, WH/BU) live on our Pin Assignment & Wire Colour Code reference. The Katlax Ordering Key shows how to read a part number to determine pin count, coding, gender, and cable length from the SKU.
IP Rating, Mating Cycles, and Environmental Resilience
Every Katlax M12 connector is rated IP67 as standard (immersion-proof to 1 m for 30 minutes per IEC 60529) when mated, and most molded variants are IP68 rated for permanent submersion in some application classes. Mechanical ratings:
- Mating cycles: 100 minimum per IEC 61076-2-101; field-tested to 500+ for industrial environments.
- Operating temperature: −40 °C to +85 °C standard; −40 °C to +105 °C with special cable jackets.
- Vibration: 10–55 Hz, 1.5 mm amplitude per IEC 60068-2-6 — passes without disconnection.
- Shock: 50 G, 11 ms half-sine per IEC 60068-2-27.
- Salt spray: 96 hours per IEC 60068-2-11 (nickel-plated brass housings).
Cable Material — PVC, PUR, or TPE?
Cable jacket selection is application-driven. We supply all three:
- PVC — general-purpose, cost-optimised. Suitable for static installations in dry, room-temperature environments. Not recommended for continuous flex.
- PUR (polyurethane) — abrasion-resistant, oil-resistant, suitable for drag-chain and high-flex applications (machine tools, robotics). 5–10× the flex life of PVC.
- TPE (thermoplastic elastomer) — chemical-resistant, food-safe options available. Used in food processing, pharma, washdown environments.
All three jackets pass UL Subject-758 / VW-1 flame-retardancy tests for our certified cable assemblies. Full datasheets in the downloads section (Volume 1 covers M-series cable, Volume 2 covers wiring harness and assembly options).
How to Select the Right M12 Connector
Use this checklist to lock down the correct part number before quoting:
- What's the signal? Sensor (A), Industrial Ethernet (D or X), Fieldbus (B or C), DC power (L or T), AC power (S or K).
- How many pins? Count signals/conductors. Add 1 for shield (data variants) or PE (power variants).
- Male or female? Convention: the device-side connector is female; the cable-side connector is male.
- Cable length? Standard 2m, 5m, 10m, 30m available off-the-shelf; custom lengths to 100m on a single SKU.
- Cable jacket? PVC (static) / PUR (flex) / TPE (chemical or food-safe).
- Termination? Pre-molded (factory IP67 seal — recommended) or field-attachable (terminated on-site).
- Approvals required? CE for EU shipping; UL for North America; CSA for Canada — all standard on Katlax SKUs.
If anything in that list is unclear for your application, talk to our application engineers — quote turnaround under 24 business hours, sample units available for evaluation.
Applications Across Industries
M12 is the workhorse interconnect for almost every modern industrial vertical:
- Factory automation: Proximity and photoelectric sensors, IO-Link masters, valve manifolds, robot end-effectors. A-coded 4-pin dominates.
- Industrial Ethernet: PROFINET, EtherCAT, Ethernet/IP backhaul (D-coded for 100 Mbit, X-coded for gigabit). The latter is now mandatory for time-sensitive networking (TSN) deployments.
- Process industries: Pharma, food & beverage, chemical plants. TPE-jacketed cables for washdown; stainless-steel hardware on request for hygienic-zone work.
- Rail and transit: Rolling stock, signalling cabinets, axle counters. Katlax M12 connectors are RDSO-approved for Indian Railways.
- Renewable energy: Wind-turbine pitch and yaw sensors, solar inverter monitoring, battery management connections.
- Mobile machinery: Agricultural machinery, construction equipment, AGV / AMR robots. PUR cables for vibration and weather resilience.
- Building automation: HVAC sensors, access control, intelligent lighting — increasingly migrating from screw-terminal blocks to M12 plug-and-play.
Why Katlax for M12
Founded in 1994 and shipping to 4,000+ customers across 35+ countries, Katlax operates one of India's only vertically-integrated industrial-connector manufacturing facilities. We do everything in-house:
- Injection moulding of housings and insulating bodies — multi-cavity tools for high-volume runs, prototype moulds for custom geometries.
- Cable processing — automated cutting, stripping, crimping, and tinning lines.
- Assembly & over-moulding for factory-sealed IP67 termination.
- Testing & QA — 100% electrical continuity, IP-leak, and pull-strength testing before shipment; periodic audits to IEC and UL standards.
Certifications: TUV Rheinland EN & IEC (M8/M12 series, certificate numbers R 60113557 and R 60113558), CE, UL (Subject-764 traceability programme — one of very few Indian manufacturers with this distinction), UKCA, ISO 9001:2015, RDSO (Indian Railways), IPC/WHMA-A-620 (wire harness), plus self-declaration on RoHS and REACH. All certificates downloadable from our downloads page.
India-based manufacturing means shorter lead times for the APAC and EMEA markets, cost-competitive pricing against European brands, and direct access to our engineering team for customisation requests. Standard SKUs ship in 1–2 weeks; custom cable assemblies in 3–4 weeks.
Frequently Asked Questions
What's the difference between A-coded and D-coded M12 connectors?
A-coded M12 connectors are for analog and digital sensor signals — 3, 4, 5, 8, 12, or 17-pin variants. D-coded M12 connectors are specifically for 100 Mbit Industrial Ethernet (PROFINET, EtherCAT, Ethernet/IP) — always 4-pin, shielded, with a distinct mechanical key so a sensor cable can't be plugged into an Ethernet socket by mistake. For Gigabit Ethernet, use the X-coded 8-pin variant instead.
Can M12 connectors handle Gigabit Ethernet?
Yes — use the X-coded variant (IEC 61076-2-109). It carries four shielded twisted pairs in an 8-pin layout and is rated for Cat-6A performance up to 10 Gbps. X-coded connectors are mandatory for time-sensitive networking (TSN) applications. D-coded is limited to 100 Mbit.
What IP rating do Katlax M12 connectors carry?
All Katlax molded M12 connectors are IP67-rated as standard (immersion to 1 m for 30 minutes per IEC 60529), and most are IP68-tested for permanent submersion. Cap an unmated port with a protective dust cap (also IP67-sealed) to maintain the rating on partially-populated panels.
What's the maximum cable length on a Katlax M12 assembly?
Standard SKUs go up to 30 m; custom cable assemblies up to 100 m on a single pre-terminated SKU. Beyond that we recommend a junction-box or in-line coupler — see our IO junction-box catalogue.
Can I get an M12 connector with a specific custom wire colour?
Standard wire colours follow IEC 60757 (see the table above). For OEM private-label or specific brand-matched colours, the Katlax customisation team can supply runs as small as 500 pieces on most codings. Contact engineering with your requirement.
What's the difference between molded and field-attachable M12 connectors?
Molded (factory-terminated) connectors are over-moulded with thermoplastic in our factory — fully sealed IP67/IP68 with no field labour required. Field-attachable connectors are screw-terminated on-site, useful for retrofits or unknown-length runs but require careful sealing and torque-tightening to maintain IP rating. For new builds, always specify molded.
Do Katlax M12 connectors work with other brands?
Yes — IEC 61076-2-101 standardisation guarantees mating compatibility across all compliant manufacturers (Phoenix Contact, Binder, Lapp, Murr, Lumberg, etc.). Mate a Katlax M12 plug with any IEC-compliant socket and it works mechanically and electrically.
What certifications do Katlax M12 products carry?
TUV Rheinland EN/IEC (third-party tested), CE marking, UL listing (Subject-764 traceability), UKCA, ISO 9001:2015 quality management, RDSO approval for Indian Railways, IPC/WHMA-A-620 for wire harness manufacturing. RoHS and REACH compliance are self-declared. All certificates are public — download from our downloads page.
What's the typical lead time for Katlax M12 connectors?
Off-the-shelf standard SKUs: 1–2 weeks ex-works Gandhinagar. Custom cable lengths and variants: 3–4 weeks. Large-volume OEM tooling (custom moulded housings or branded over-moulds): 8–12 weeks. We hold buffer stock on the highest-volume A-coded and D-coded sensor cables — most quick-turn requirements can be served from stock.
What MOQ does Katlax require for M12 orders?
No MOQ on standard catalogue parts — single-piece sample orders welcome for engineering evaluation. Custom and OEM private-label runs typically start at 500 pieces. Distributor programs offer better pricing tiers from 5,000 pieces onward.
