Industrial USB Cables — Ruggedised Data Connectivity
Standard consumer-grade USB cables fail quickly in industrial environments — the unshielded jacket, weak strain relief, and flimsy connector latches simply aren't built for vibration, oil, abrasion, or repeated unplugging. Industrial USB cables close that gap with shielded constructions, ruggedised over-moulded connectors, screw-lock retention, and PUR or TPE jacketing rated for drag-chain and washdown environments.
Katlax manufactures industrial USB 2.0, USB 3.0, and USB Type-C cables at our Gandhinagar facility — pre-terminated assemblies, panel-mount feedthroughs, and locking-variant cables for applications where a casual disconnect is unacceptable (medical imaging, machine vision, instrumented test rigs).
USB Cable Variants
| Type | Speed | Typical use |
|---|---|---|

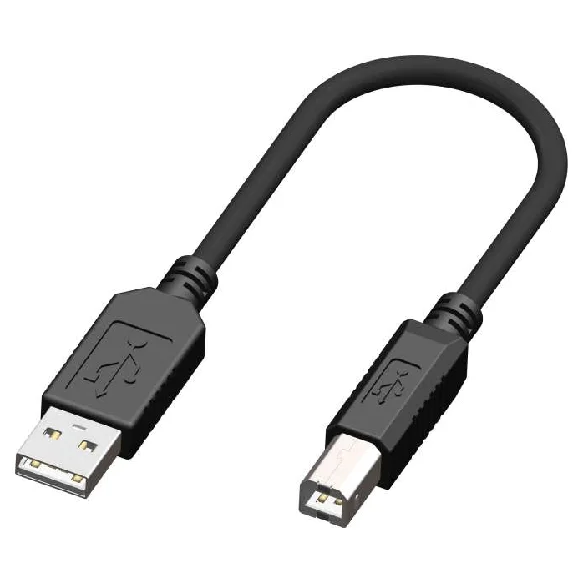

| USB 2.0 A-to-B | 480 Mbps | Standard peripheral interface; PLC programming cables, panel-mount HMI links |
| USB 3.0 A-to-B | 5 Gbps | Machine vision cameras, high-throughput test instrumentation |
| USB 3.0 A-to-Micro-B | 5 Gbps | Smaller form-factor industrial devices, portable measurement equipment |
| USB Type-C | 10 Gbps (USB 3.2 Gen 2) / 40 Gbps (USB4) | Modern instrumentation, single-cable power + data + display interfaces |
| USB extension (active) | Up to 60 m | Long-distance USB device extension with inline signal repeater |
Industrial Construction Features
- Double-shielded cable: Foil + braid shield for full EMI/RFI immunity in environments with VFDs, servo drives, and high-current switching.
- PUR / TPE jacketing: Oil-resistant, abrasion-resistant, and flexible across wide temperature ranges. Optional for drag-chain and continuous-flex applications.
- Over-moulded strain relief: Single-piece moulded boots that resist pull-off failures common in consumer cables.
- Screw-lock connectors: M12 X-coded to USB Type-A or Type-B adapters with screw locking — replaces unlocked USB connectors where retention matters.
- Gold-plated contacts: Standard on industrial USB; resists corrosion and tin-whisker failures.
- Latching variants: Locking USB connectors with retention clips that prevent accidental disconnect during machine vibration.
Length Considerations
- USB 2.0: Maximum 5 m passive; longer runs require active extension cables with inline repeaters.
- USB 3.0: Maximum 3 m passive; active extension to 30+ m available.
- USB Type-C: Passive lengths depend on speed grade. 1 m for USB 3.2 Gen 2 / USB4. Longer requires active cables with inline retimers.
For runs beyond passive limits, Katlax supplies active USB extension cables with inline signal repeaters — up to 60 m on USB 2.0 / 30 m on USB 3.0.
Applications
- Machine vision: USB 3.0 / USB 3.1 industrial cameras with locking connectors.
- PLC programming: Ruggedised programming cables for Siemens, Allen-Bradley, Mitsubishi, Omron PLCs.
- Panel-mount HMIs: Front-panel USB feedthroughs for service technician laptops.
- Test and measurement: Oscilloscopes, multimeters, data acquisition modules.
- Medical equipment: Ruggedised USB for imaging modalities, instrumented patient monitoring.
- EV charging diagnostics: Service ports on charging-station controllers.
Custom USB Cable Builds
Beyond the catalogue: custom-length cables, panel-mount feedthrough assemblies (USB Type-A to internal Type-B), Y-cables for splitting host power between two devices, and hybrid cables combining USB with M12 power on a single jacket. Our engineering team builds to drawing — send your requirements for a quote within 3–5 business days.
Why Katlax for Industrial USB
Every USB cable is 100% electrically tested — continuity and pin-out verified before shipment. Manufactured to our IPC/WHMA-A-620 certified standard. Certifications: CE, RoHS, ISO 9001:2015. Lead times: 2–3 weeks standard catalogue lengths; 3–4 weeks for custom builds.
